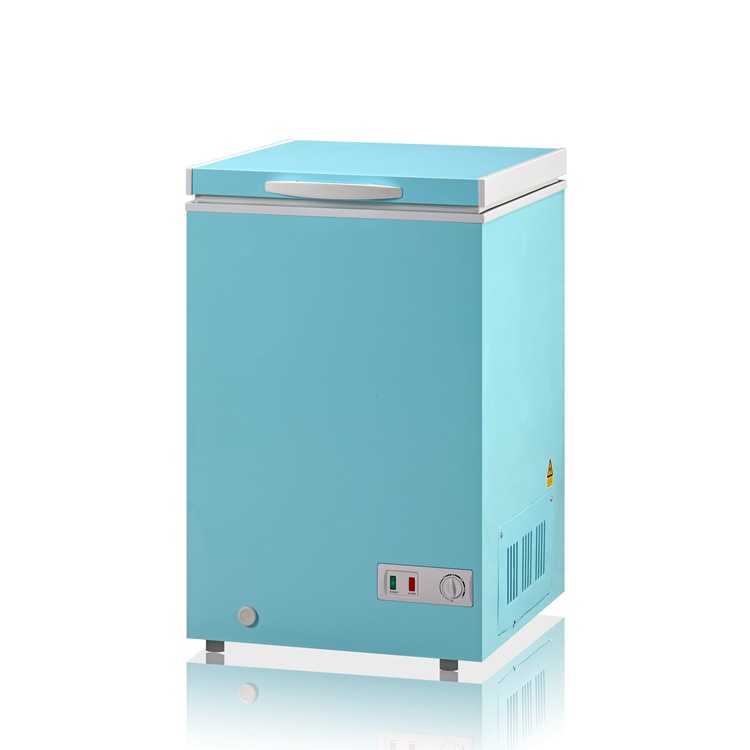

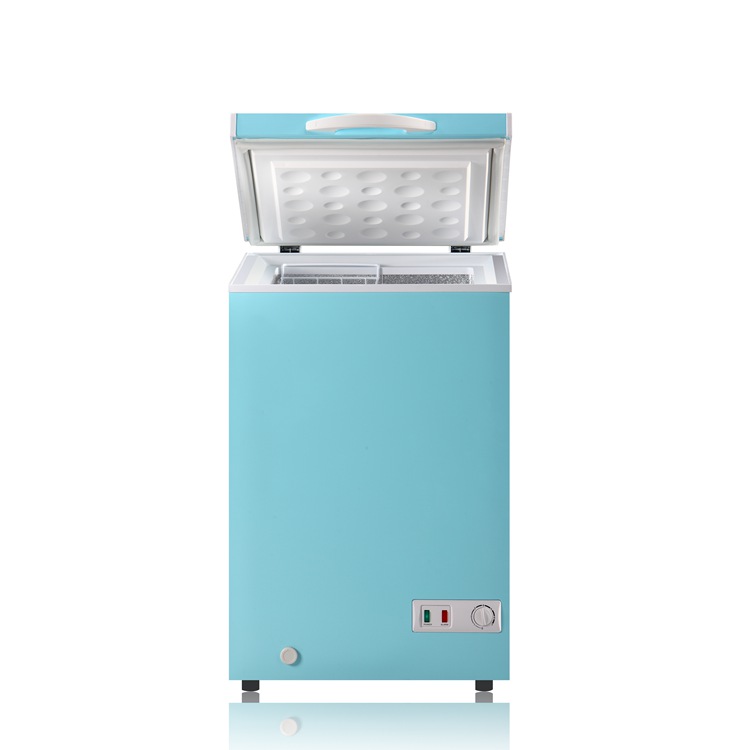

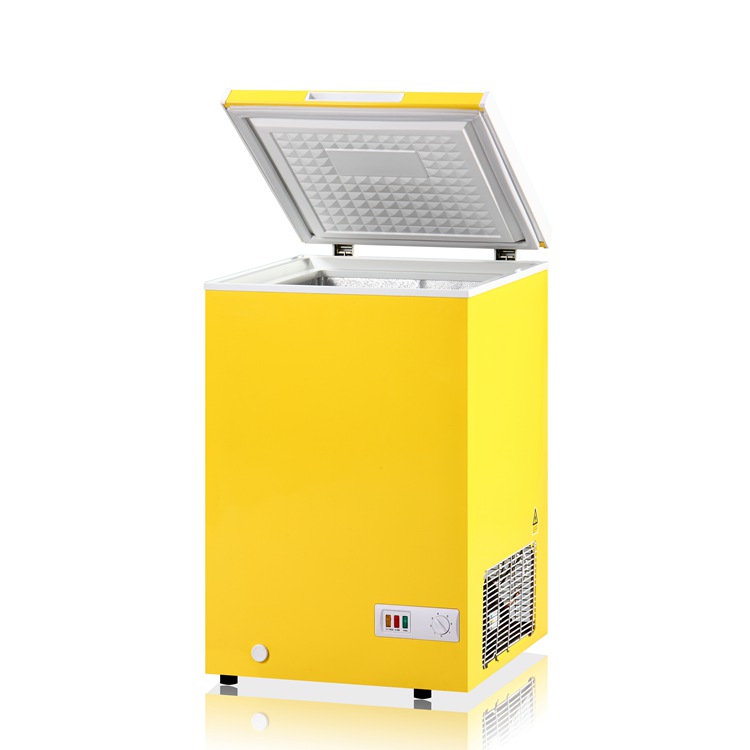

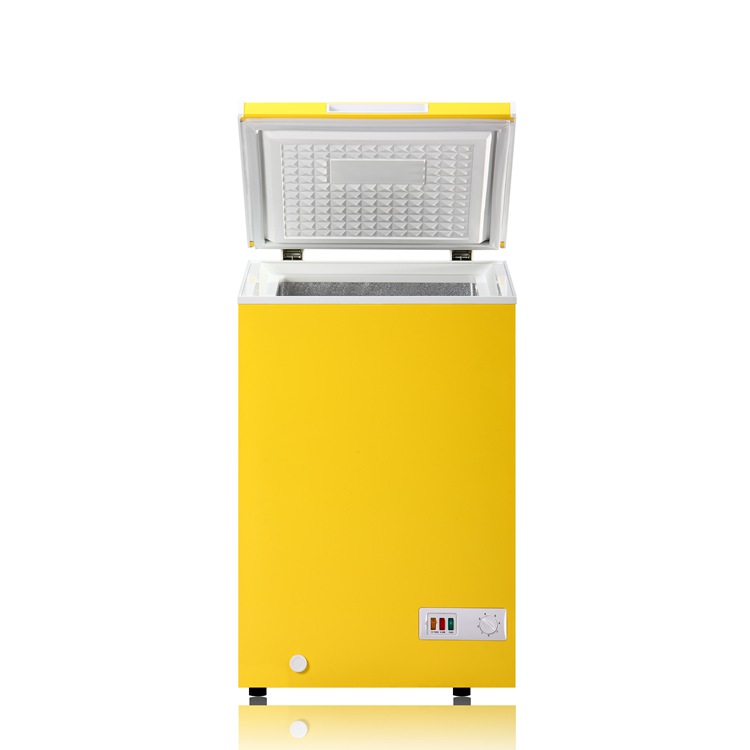

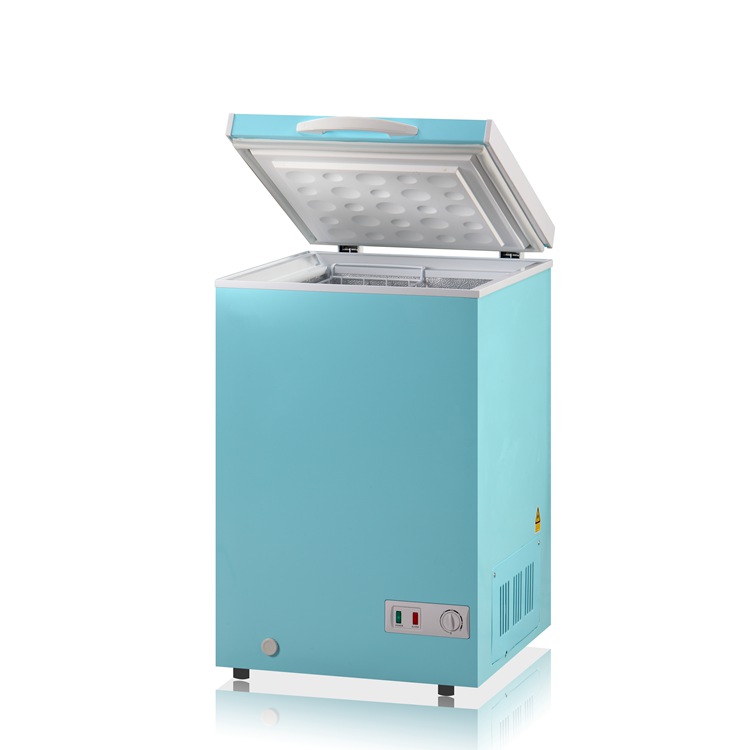

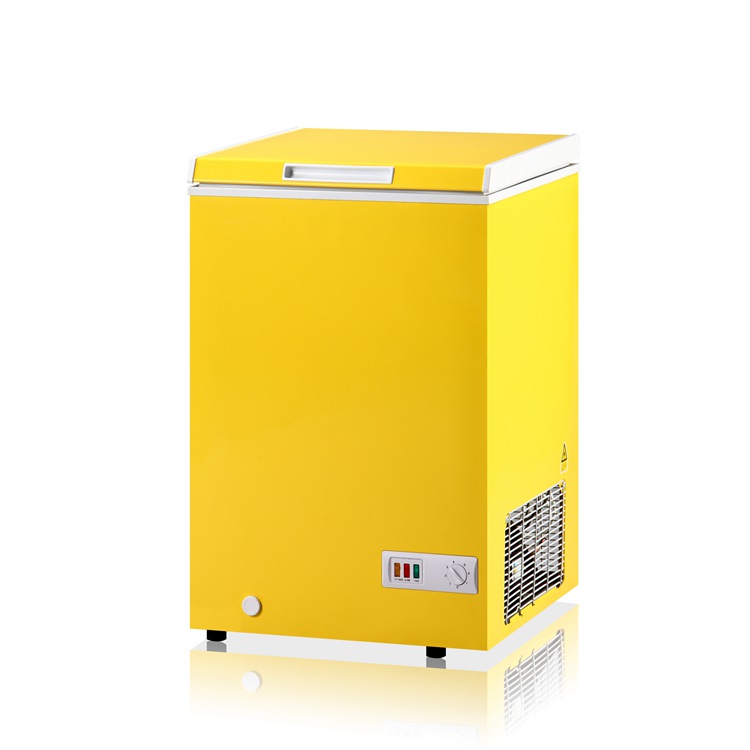

PHIYOND BD-105 98L Single Door Deep Freezer Small Chest Freezer
| No. | Product Model | BD-105 |
| 1 | Type | Single-temperature Chest Freezer |
| 2 | Number of Doors | 1 |
| 3 | External Dimension (WxDxH) (mm) | 545*590*850 |
| 4 | Gross Capacity (L) | 101 |
| Total Effective Capacity (L) | 98 | |
| 5 | Climate Class | SN/N/ST/T |
| 6 | Defrosting | Manual |
| 7 | Temperature Range (℃) | Min ≤-18 |
| 8 | Voltage/Frequency (V/Hz) | 220~240/50 |
| 9 | Main Fuse Minimum(A) | 0.36 |
| 10 | Total Input Power (W) | 52 |
| 11 | Power Consumption (kW•h/24h) | 0.465 |
| Power Consumption (kW•h/year) | 170 | |
| 12 | Energy Efficiency Grade (Nominal/Measured） | A+ |
| 13 | Noise dB (A) | ﹤42db |
| 14 | Freezing Capacity (kg/24h) | 5 |
| 15 | Foaming Agent | Cyclopentane (C-P) |
| Foaming Material | Polyurethane (PU) | |
| Density of Foaming Material (kg/m3) | 32-35 | |
| Thickness of Cabinet Wall (mm) | 65 | |
| 16 | Compressor Brand/Model | Donper/A120CY1 |
| Compressor Refrigerating Capacity (W) | 120 | |
| 17 | Refrigerant | R600a |
| 18 | Evaporator (Copper Tube/Bundy Tube) | Bundy Tube |
| 19 | Condensor | Hang on Back |
| 20 | Fan | √ |
| 21 | Temperature Controller | Mechanical |
| 22 | Temperature Compensation Mode | × |
| 23 | Interior Light | LED Light |
| 24 | AC Cord & Plug |
AC Cord: 1.8M AC Plug Type: Optional |
| 25 | Handle | Integrated/External |
| 26 | Lock | Without |
| 27 | Food Basket (No./Type) | 1/White Wire |
| 28 | Number of ABS Defrost Shovel | 1 |
| 29 | Rigid Caster/Swivel Caster | Optional |
| 30 | Cabinet Exterior Material | PCM |
| Cabinet Exterior Color | White | |
| Cabinet Inner Liner Material | Embossed Aluminium Sheet | |
| 31 | Cabinet Mouth Material | ABS Overall Injection |
| Cabinet Mouth Color | White | |
| 32 | Door (Lid) Type | Flat |
| Door (Lid) Material | PCM+ABS | |
| Door (Lid) Color | White | |
| Door (Lid) Thickness (mm) | 80 | |
| Door (Lid) External Thickness (mm) | 48 | |
| Removable Door Seal,Yes or No | Yes | |
| 33 | N.W.(kg) | 30 |
| G.W.(kg) | 33 | |
| 34 | Packing Dimension (WxDxH) (mm) | 635*585*880 |
| Packing Material | Cystosepiment Bottom Pallet+Cystosepiment Top+Strong Export Brown Carton | |
| 35 | Loading Quantity (PCS)(1*40'HQ) | 226 |
