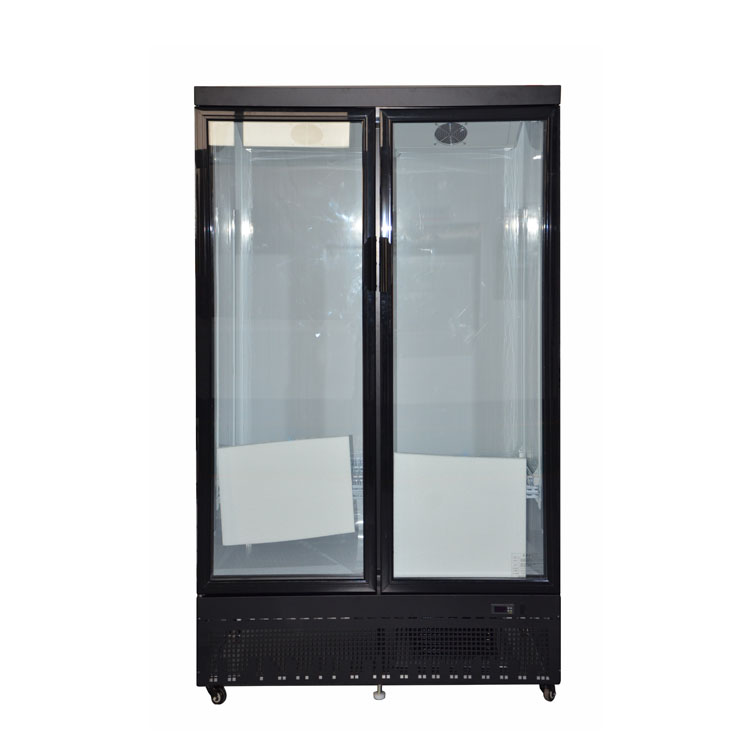

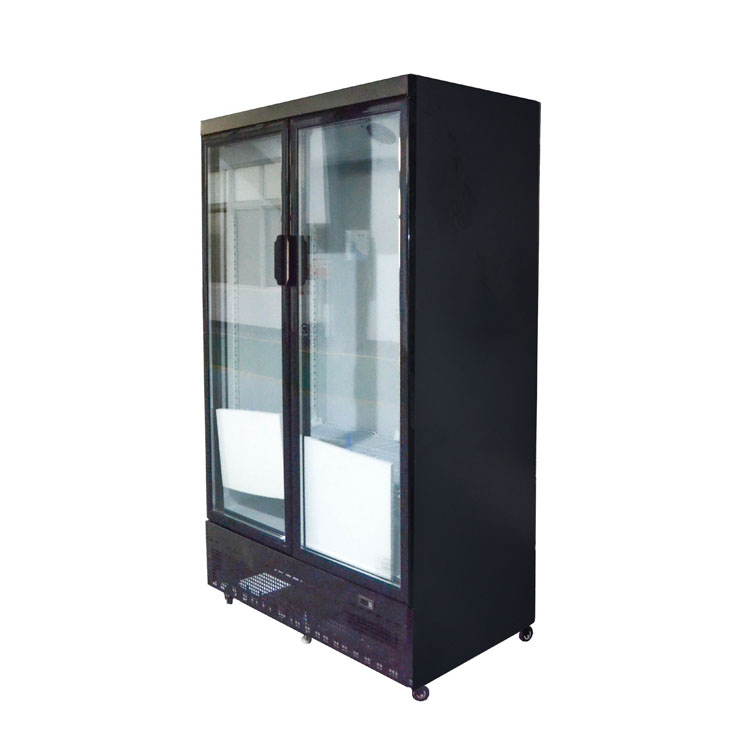

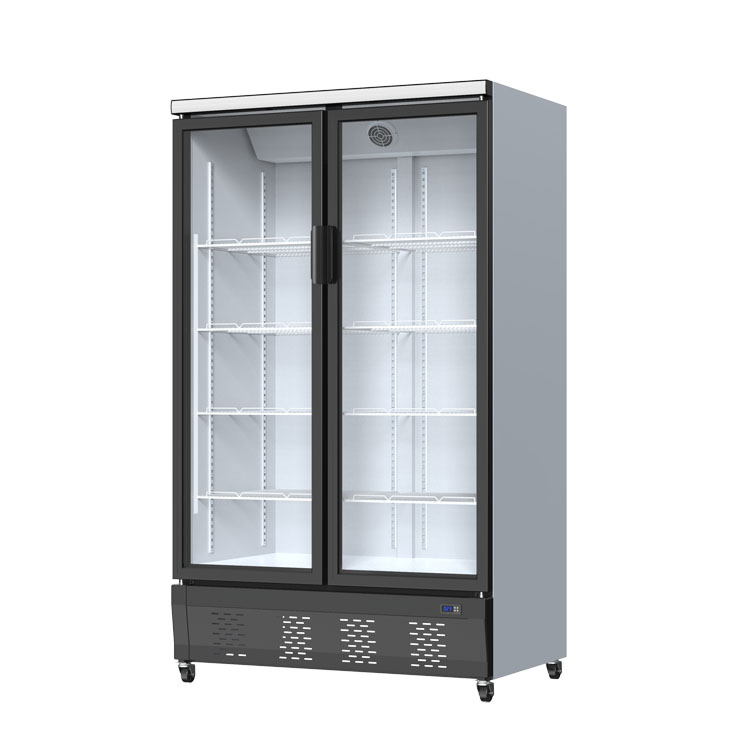

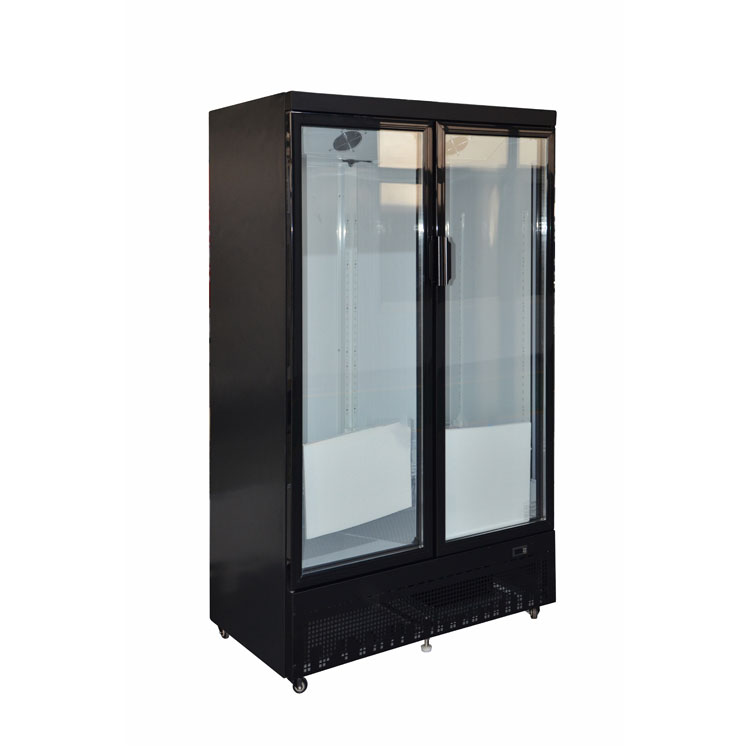

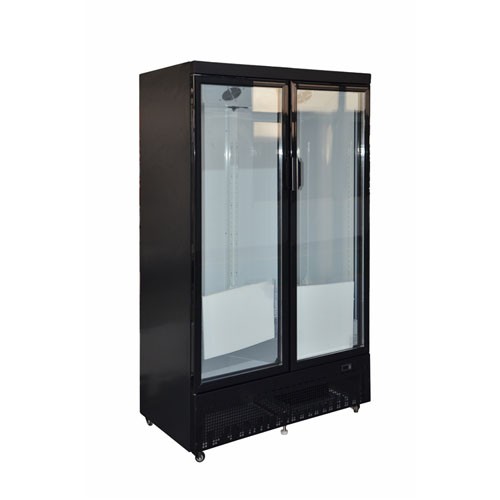

PHIYOND LSC-1076F 952L Upright Display Chiller
| No. | Product Model | LSC-1076F |
| 1 | Number of Doors | 2 |
| 2 | External Dimension(WxDxH) (mm) | 1215*740*2050 |
| 3 | Inner Dimension (WxDxH) (mm) | 1115*590*1474 |
| 4 | Net Capacity（L） | 952 |
| 5 | Cooling Mode | Air Cooling |
| 6 | Climate Class | ST |
| 7 | Temperature Range (°C) | 1-10 |
| 8 | Voltage/Frequency (V/Hz) | 220-240/50 |
| 9 | Rated Current（A） | 4 |
| 10 | Total Input Power（W） | 400 |
| 11 |
Power Consumption (Nominal/Measured) (kW•h/24h) |
－ |
| 12 | Noise dB(A) | ﹤42db |
| 13 | Foaming Agent | Cyclopentane |
| 14 | Thickness of Foaming Layer (mm) | 50 |
| 15 | Compressor Brand/Model |
Donper/K480CU1 Wanbao/FNA100 |
| 16 | Refrigerant | R290 |
| 17 | Refrigerant Charge (g) | 105 |
| 18 | Evaporator | Aluminum Tube Aluminum Fin Evaporator |
| 19 | Evaporator Fan | Brand: SUNON, Model:12038, 3PCS, IPX5 |
| 20 | Condenser | External (Wire and Tube Condenser)+Fan |
| 21 | Conderser Fan | 40W Shaded-pole Asynchronous Motor (Aluminium Winding)+Aluminium Blades |
| 22 | Thermostat Type | Digital |
| 23 | Thermostat Brand/Model | CAREL/PZQQS1E0G1K |
| 24 | AC Cord & Plug |
AC Cord: 2.2M AC Plug Type: Optional |
| 25 | Light inside Cabinet |
1) 3PCS 12V LED Light 2) Spec: Length-1300mm, 60 lamp beads/m, color temperature: 11000K 3) Installed on left and right side of inner cabinet, door pillar |
| 26 | Light Box | × |
| 27 | Light Control | On off switch seperately control the signboard lamp and inner lamp |
| 28 | Inside Shelf | 4-Layer (8Pcs)/5-Layer (10Pcs) Split-type with Dividers |
| 29 | Casters |
1) 4Pcs, H=100mm, Nylon Material 2) The two front wheels on both sides of the cooler are normally equipped with brakes. |
| 30 | Water Tray | Back Mounted Water Tray with Auto Evaporation |
| 31 | Cabinet Side Panel Material | PCM |
| 32 | Cabinet Side Panel Color | White/Black |
| 33 | Cabinet Back Panel Material | GI (Galvanized Steel Sheet) |
| 34 | Cabinet Inner Liner Material | Pre-coated Aluminum Sheet |
| 35 | Cabinet Inner Liner Color | White |
| 36 | Glass Door Type | Hinged Door with Automatic Rebound |
| 37 | Glass Type | Double-layer Hollow Toughened Glass+Electric-heating+LOW-E |
| 38 | Glass Door Frame Material | Aluminium Alloy |
| 39 | Glass Door Frame Color | Aluminium Alloy Primary Color/Black Color |
| 40 | Handle | Hidden Type or External Type, Aluminium Alloy Primary Color/Black Color |
| 41 | Lock & Key | √ |
| 42 | Door Gasket | Detachable, Black Color |
| 43 | N.W.（kg） | 104 |
| 44 | G.W.（kg） | 119 |
| 45 | Packing Dimension (WxDxH) (mm) | 1255*760*2100 |
| 46 | Packing Method | Wood Bottom Pallet+Carton+Wood Frame Top |
| 47 | Loading Quantity (PCS)(1*40'GP) | 28 |
